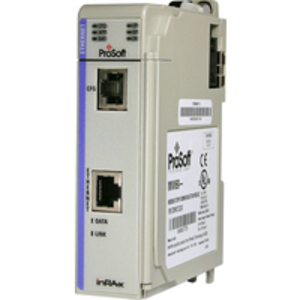

MVI69-MNETC ProSoft Technology Modbus TCP/IP Multi Client Module

The MVI69-MNETC Modbus TCP/IP Client Communication Module allows Rockwell Automation® CompactLogix / MicroLogix® processors to interface easily with Modbus TCP/IP server devices.

Features and Benefits
-Support for the storage and transfer of up to 5000 registers to/from the PLC processor using the block transfer interface
-User-definable module memory usage
-10/100 Base-T Ethernet-compatible interface
-All data mapping begins at Modbus register 40001
-Configurable parameters for the Client, including a minimum response delay of 0 to 65535 milliseconds
-Floating-point support for Enron, Daniels®, and other floating-point data types
-Single-Slot, 1769 backplane-compatible
-The module is recognized as an Input/Output module and has access to processor memory for data transfer between processorand module.
-Ladder Logic is used for data transfer between module and processor. Sample ladder file included.

• Specification
• Dimensions - Standard 1769 Single-slot module
• Current Load - 800 mA max @ 5 VDC Power supply distance rating of 2 (L43 and L45 installations on first 2 slots of 1769 bus)
• Operating Temp - 32° F to 140° F (0° C to 60° C)
• Storage Temp :: -40° F to 185° F (-40° C to 85° C)
• Relative Humidity - 5 to 95% (without condensation)
• LED Indicators - Power and Module Status Application Status, CFG Port Activity, Ethernet Port Activity, Error Status
• CFG Port (CFG) - RJ45 (DB-9M with supplied cable), RS-232 only, No hardware handshaking
• App Port (Ethernet modules) - 10/100 Base-T Ethernet compatible interface, Electrical Isolation 1500 V rms at 50 Hz to 60 Hz for 60 s, applied as specified in section 5.3.2 of IEC 60950: 1991
• Shipped with Unit - RJ45 to DB-9M cables for each port, 6-foot RS-232 configuration Cable
