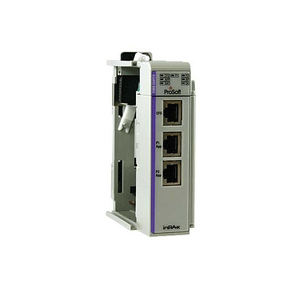

MVI69-S3964R ProSoft Technology Siemens Module CompactLogix

The module is ideal in control configurations where there is a need for the CompactLogix processor to exchange data with other non-Rockwell Automation control devices in low speed applications.

The MVI69-S3964R can communicate with devices using two RS-232, RS-422 communication lines (ports). The ports operate independently from each other

Features and Benefits
-The 3964R protocol was designed by Siemens for bidirectional data communication through a point-to-point connection. It is a peer to peer protocol with read and write access. A BCC check sum ensures the integrity of the transfer.

• Specifications
• Single Slot - 1769 backplane compatible
• The module is recognized as an Input/Output module and has access to processor memory for data transfer between processor and module
• Ladder Logic is used for data transfer between module and processor. Sample ladder file included.
• Configuration data obtained from configuration text file downloaded to module. Sample configuration file included.
• Supports all CompactLogix processors: L20/L23/L30/L31/L32/L35, L43 and L45 (L43 and L45 supported with RSLogix 5000 v16.03 or later)
• Also supports MicroLogix 1500 LRP
