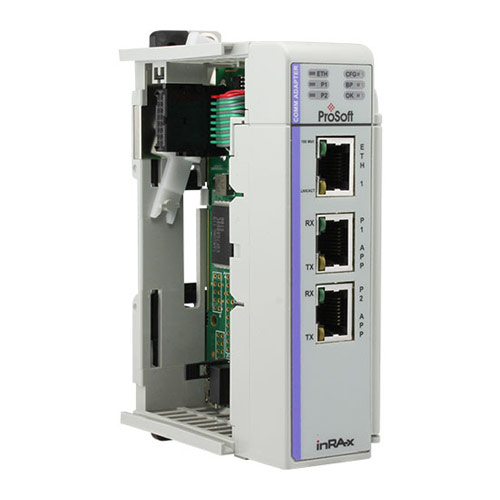

MVI69E-LDM ProSoft Technology Linux Development Module

The MVI69E-LDM module allows users to develop and deploy C/C++ custom algorithm applications for CompactLogix™ systems. Users are also able to create drivers for specialty Ethernet and Serial end-devices. The Linux Development module comes with a built-in API for backplane communications to the processor.

With the separate development kit DVD, you are the developer who controls exactly what this module can and cannot do.

Features and Benefits
-Ideal for custom algorithm applications
-One independent Ethernet port, and two independent, isolated, serial ports (RS232/422/485)
-Industrial fan-less design
-Built-in API included for backplane communications to the processor
-Linux Virtual Machine (VM) and development environment provided on separate development kit DVD
-VM contains preinstalled toolchain and libraries
-VM contains the popular Eclipse IDE
-Ethernet & multi-serial port example applications provided on VM

• Description
• PROFIBUS DP Specifications
• CPU - 400MHz ARM9 G20
• Operating System - Linux (kernel 2.6.33.7)
• Linux Distribution - TimeSys
• System Memory - 64MB SDRAM
• Flash Memory - 256MB NAND Flash
