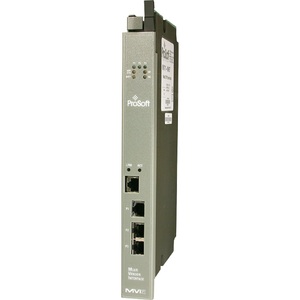

MVI71-DFNT ProSoft Technology EtherNet/IP Client/Server Module PLC

The EtherNet/IP Client/Server Network Interface Module allows PLC processors to interface with EtherNet/IP protocol (Explicit Messaging) compatible devices and hosts. The MVI71-DFNT module provides a serial pass-thru channel 0 service for remote Ethernet programming and troubleshooting

Features and Benefits
-The MVI71-DFNT module is a single slot solution that provides a powerful connection between Rockwell Automation's PLC processor and EtherNet/IP (DF1 for Ethernet) network applications.
-The module can send read or write commands to remote devices on the EtherNet/IP network. The MVI71-DFNT also has 20 servers that allows the module to receive commands from remote devices. The MVI71-DFNT Pass-Through server allows the user to edit and transfer the PLC ladder logic using an Ethernet connection. Up to 100 commands can be configured by the user.

• Specifications
• Form Factor - Single Slot 1771 chassis compatible, BTR/BTW data transfer, Local or remote rack
• Backplane current load - 800 mA @ 5.1 VDC
• Operating temperature - 32° F to 140° F (0° C to 60° C)
• Storage temperature :: -40° F to 185° F (-40° C to 85° C)
• Shock - 30 g operational, 50 g non-operational
• Vibration - 5 g from 10 to 150 Hz
• Relative humidity - 5% to 95% (without condensation)
• LED Indicators - Module status, Backplane transfer status, Application status, Serial activity and error LED status
• Configuration Serial port (CFG) - DB-9M PC compatible, RS-232, Hardware handshaking
• Ethernet Port (Ethernet modules) - RJ45 Connector, Link and activity LED indicators, Electrical Isolation 1500 V rms at 50 Hz to 60 Hz for 60 seconds, applied as specified in section 5.3.2 of IEC 60950: 1991, Ethernet Broadcast Storm Resiliency = less than or equal to 5000 [ARP] frames-per-second and less than or equal to 5 minutes duration
