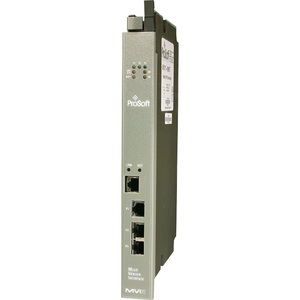

MVI71-GEC ProSoft Technology Generic ASCII Ethernet Module PLC

The Generic ASCII Ethernet Network Interface Module (MVI71-GEC) allows PLC processors to connect to any generic ASCII device such as bar code scanners, weigh scale interfaces, legacy ASCII protocol connections, terminal port emulation and printer drivers. The use of the TCP/IP protocol at the device level on the plant floor has become widespread. The MVI71-GEC takes advantage of Ethernet’s speed while also allowing greater distances between networked devices

Features and Benefits
-The MVI71-GEC module is a powerful communication interface for Rockwell Automation PLC processors. Developed under license from Rockwell Automation, the module incorporates proprietary backplane technology that enables powerful data access between the module and the PLC processor.
-Five servers and clients are present on the module permitting both the reception and transmission of data between the Rockwell Automation processor and attached devices.

• Specifications
• Form Factor - Single Slot 1771 chassis compatible, BTR/BTW data transfer, Local or remote rack
• Backplane current load - 800 mA @ 5.1 VDC
• Operating temperature - 32° F to 140° F (0° C to 60° C)
• Storage temperature :: -40° F to 185° F (-40° C to 85° C)
• Shock - 30 g operational, 50 g non-operational
• Vibration - 5 g from 10 to 150 Hz
• Relative humidity - 5% to 95% (without condensation)
• LED Indicators - Module status, Backplane transfer status, Application status, Serial activity and error LED status
• Configuration Serial port (CFG) - DB-9M PC compatible, RS-232, Hardware handshaking
• Ethernet Port (Ethernet modules) - RJ45 Connector, Link and activity LED indicators, Electrical Isolation 1500 V rms at 50 Hz to 60 Hz for 60 seconds, applied as specified in section 5.3.2 of IEC 60950: 1991, Ethernet Broadcast Storm Resiliency = less than or equal to 5000 [ARP] frames-per-second and less than or equal to 5 minutes duration
