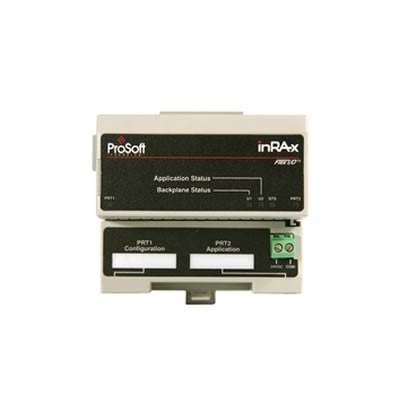

MVI94-DNP ProSoft Technology DNP 3.0 Master/Slave Module

The MVI94 DNP 3.0 Master/Slave
Communication Module is a single slot, backplane compatible DNP 3.0 interface solution for the Rockwell Automation Flex platform. This module provides highly configurable support of both DNP 3.0 Master and Slave implementations (level 2 minimum), allowing the many SCADA and field devices supporting the DNP protocol to be integrated into the powerful Flex platform.

Features and Benefits
-The module supports DNP Subset Level 2 features and some of the Level 3 features allowing the many SCADA and field devices supporting the DNP protocol to be integrated into the Flex platform. The module acts as an input/output module between the DNP network and the Flex backplane. The data transfer from the Flex processor is asynchronous from the actions on the DNP network. Databases are user defined and stored in the module to hold the data required by the protocol.
-The MVI94-DNP module is the ideal solution for many applications where DNP 3.0 master and/or slave protocol connectivity must be added to a FLEX system. -The DNP solution is designed to address the expanding interest in the DNP 3.0 protocol. The protocol was originally developed for the power utility industry and is recommended by the IEEE for RTU-IED communication applications. Additional industrial applications are quickly arising in the water/wastewater and oil & gas industries.

• Specifications
• Form Factor - Single Slot 1794 Backplane compatible, Locate in any slot of Backplane
• Backplane current load - 20 mA @ 5 VDC
• External power supply - 12 VDC to 24 VDC, 340 mA to 170 mA
• Operating temperature - 32° F to 131° F (0° C to 55° C)
• Storage temperature :: -40° F to 185° F (-40° C to 85° C)
• Shock - 30 g operational, 50 g non-operational
• Vibration - 5 g from 10 to 150 Hz
• Relative humidity - 5% to 95% (without condensation)
• LED indicators - Module status, Backplane transfer status, Application status, Serial activity and error LED status
• Configuration Serial port (PRT1) - Mini-DIN, RS-232, Hardware handshaking
• Application serial Port (PRT2) - Mini-DIN, RS-232/422/485 jumper selectable, 500 V optical isolation from backplane
• Dimensions (with Module installed in Base) - Height x Width x Depth 3 in. x 3.7 in. x 2.7 in.94 mm x 94 mm x 69 mm
