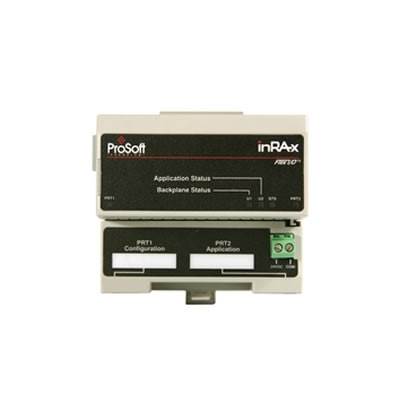

MVI94-MCM ProSoft Technology Modbus Master/Slave Module FLEX I/O

The MVI94 Modbus Master/Slave Communication Module allows Flex® processors to interface easily with other Modbus protocol compatible devices.

The module acts as an Options module between the Modbus network and the Flex backplane. Compatible devices include not only Modicon® PLCs (almost all support the Modbus protocol) but also a wide range of process and control devices from a variety of manufacturers. Many SCADA packages also support the Modbus protocol

Features and Benefits
-Support for the storage and transfer of up to 5000 registers to/from the Flex processor’s data files
-Application port can emulate Modbus master or slave device -Supports Enron version of Modbus protocol for floating point data transactions

• Specifications
• Form Factor - Single Slot 1794 Backplane compatible, Locate in any slot of Backplane
• Backplane current load - 20 mA @ 5 VDC
• External power supply - 12 VDC to 24 VDC, 340 mA to 170 mA
• Operating temperature - 32° F to 131° F (0° C to 55° C)
• Storage temperature :: -40° F to 185° F (-40° C to 85° C)
• Shock - 30 g operational, 50 g non-operational
• Vibration - 5 g from 10 to 150 Hz
• Relative humidity - 5% to 95% (without condensation)
• LED indicators - Module status, Backplane transfer status, Application status, Serial activity and error LED status
• Configuration Serial port (PRT1) - Mini-DIN, RS-232, Hardware handshaking
• Application serial Port (PRT2) - Mini-DIN, RS-232/422/485 jumper selectable, 500 V optical isolation from backplane
• Dimensions (with Module installed in Base) - Height x Width x Depth 3 in. x 3.7 in. x 2.7 in.94 mm x 94 mm x 69 mm
