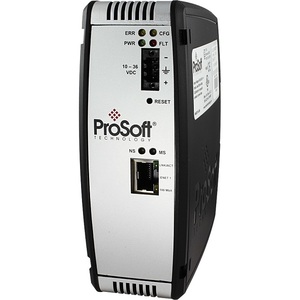

PLX31-EIP-MBTCP ProSoft Technology EtherNet/IP to Modbus TCP/IP

The ProSoft Technology’s EtherNet/IP™ to Modbus® TCP/IP communication gateway allows high-speed bi-directional data transfers between EtherNet/IP™ enabled controllers or devices and Modbus® TCP/IP controllers or devices.

Our Modbus® TCP/IP driver features multiple client and server functionality, for faster data transmission. In addition, the gateway includes several features, including data prioritization, that allow for simplified integration, reduced commissioning time and optimized performance.

Features and Benefits
- Data prioritization: Multiple I/O connections allow you to set RPIs for status and/or control data, optimizing Ethernet bandwidth.
- Includes an embedded EDS Add-On Profile, allowing for simplified integration and reduced commissioning time.
- Includes a SD card slot (SD card optional) for storing configuration files. This can be used for disaster recovery.
- ProSoft Discovery Service: This utility allows your PC to see the gateway and change its default IP address without being on the same subnet.
-Secure module configuration via module switch (v1.04 and greater).
-Up to 4000 16-bit registers can be used to exchange large amounts of data.

• Specifications
• Power Supply - 24 VDC nominal 18 to 32 VDC allowed Positive, Negative, GND Terminals
• Current Load - 24 VDC nominal @ 300 mA,10 to 36 VDC @ 610 mA maximum
• Operating Temperature :: -25°C to 70°C (-13°F to 158°F)
• Storage Temperature :: -40°C to 80°C (-40°F to 176°F)
• Relative Humidity - 5% to 95% RH with no condensation
• Dimensions - 5.38 x 1.99 x 4.38 in, 13.67 x 5.05 x 11.13 cm
• LED Indicators -Configuration (CFG), Error (ERR), Power (PWR), Hardware Fault (FLT), Network Status (NS), EtherNet/IP™ Class I or Class III Connection Status (EtherNet/IP Only) Module Status (MS), Module Configuration Status (EtherNet/IP Only) Ethernet Communication Port Link/Activity, and 100 mbit
• Vibration - IEC 60068-2-6; 5G @ 10 to 150 Hz
