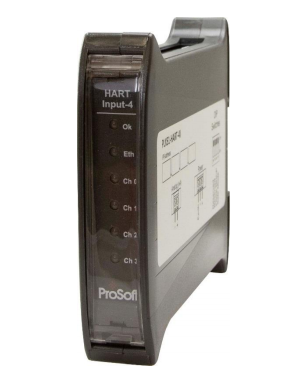

PLX51-HART-4I ProSoft Technology HART Module

The PLX51-HART-4I allows users to easily connect their existing HART-compatible field devices to EtherNet/IP™, Modbus® TCP/IP, and DNP3 Ethernet networks. The module can be used to connect HART Input devices such as process instruments into an Ethernet network.

The PLX51-HART-4I supports up to 4 channels of HART communication, as well as Analog 4-20 mA signals for real-time process variables to/from the HART-compatible device.

Features and Benefits
- Support for point-to-point and Multi-drop (maximum of 15 devices) HART networks
-EtherNet/IP enables a HART device to be added directly into a Rockwell Automation® Logix I/O tree
-Modbus TCP/IP enables a HART field device to be viewed as a Modbus Slave device
-DNP3 converts a HART field device into a DNP3 Outstation (slave) supporting Secure Authentication
-DTM (Device Type Manager) / HART Pass-through is available for further simplifying device configuration and management using an FDT frame
-Built-in webserver provides detailed diagnostics of system configuration and operation as well as field device diagnostics
-Direct-to-tag technology with EtherNet/IP
-Can be used in a redundant ControlLogix® controller system
-Built-in packet analyzer for HART networks

• Specifications
• Enclosure Rating - IP20, NEMA/UL Open Type
• Temperature :: -20 to 70 °C
• Earth connection - Yes, terminal based
• Emissions - IEC61000-6-4
• ESD Immunity - EN 61000-4-2
• Radiated RF Immunity - IEC 61000-4-3
• EFT/B Immunity - EFT: IEC 61000-4-4
• Surge Immunity - Surge: IEC 61000-4-5
• Conducted RF Immunity - IEC 61000-4-6
