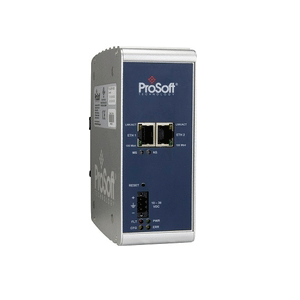

PLX82-EIP-61850 ProSoft Technology EtherNet/IP Server to IEC Gateway

The ProSoft Technology® EtherNet/IP™ to IEC 61850 communication gateway allows Rockwell Automation® PACs to interface with IEC 61850 Intelligent Electronic Devices (IED) such as substation power monitors and relays. The gateway acts as an IEC 61850 Client polling the devices on your network.

The two ports allow the IEC 61850 and EtherNet/IP™ protocols to reside on separate subnets.

Features and Benefits
- The supplied configuration software enables you to import all of your relevant IED tags into your Logix controller tag database reducing configuration time and errors
-Multiple EtherNet/IP™ I/O connections give you large amounts of data to transfer in a real time environment
-Standards-based identification of device types simplifies implementation and maintenance

• Specifications
• Power Supply - 24 VDC nominal 10 to 36 VDC power input allowed Positive, Negative, GND Terminals 2.5 mm screwdriver blade
• Current Load - 200 mA max @ 24 VDC 150 mA max @ 32 VDC 450 mA max @ 10 VDC
• Operating Temperature :: -25°C to 70°C (-13°F to 158°F)
• Storage Temperature :: -40°C to 85°C (-40°F to 185°F)
• Relative Humidity - 5% to 95%, with no condensation
• Dimensions H x W x D - 11.99 x 5.1 x 10.62 cm 4.72 x 2.0 x 4.18 in
• Shock - IEC 60068-2-27; 15G @ 11ms (Operational) IEC 60068-2-27; 30G @ 18ms (Non-Operational)
• Vibration - IEC 60068-2-6; 5G, 10 to 150 Hz
• LED Indicators - ERR, CFG, FLT, PWR
