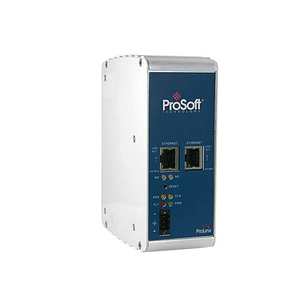

The Modbus TCP/IP to IEC 61850 gateway enables communication between the Intelligent Electronic Devices (IEDs) on an IEC 61850 network and Programmable Logic Controllers (PLCs) or Programmable Automation Controllers (PACs) on a Modbus TCP/IP network.
The configuration utility software provided with the gateway uses IED configuration files to import complex IEC 61850 data structures. The utility creates Variable files and Function Block files for import into Unity Pro projects for Quantum or M340 processors.
Features and Benefits - Configuration Utility Integrates Tightly with Unity Pro -Configuration Archive and Diagnostics -Import Configured IED files -Modbus TCP/IP Client/Server support- Specifications
- Hardware - Two (2) Ethernet ports for Modbus TCP/IP and IEC 61850 communication
- Software - ProSoft 61850 Configuration Manager for configuration and diagnostic viewing,ProSoft 61850 Tag Monitor for viewing live tag data, ProSoft Discovery Service for setting a temporary IP address
- Configuration Storage - Configuration settings saved on a removable 1GB Industrial SD Card ProSoft 61850 Configuration Manager saves configuration information to an offline file.
