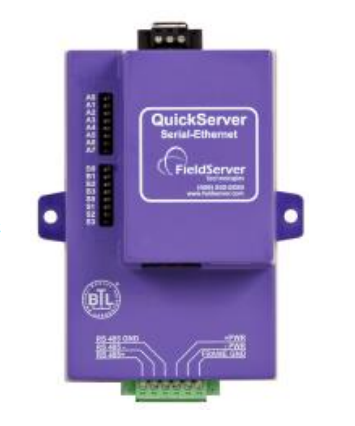

PS-QS-1×10-0757 ProSoft Technology BACnet MS/TP or BACnet/IP

QuickServer, by FieldServer, is a high performance, fully configurable, cost effective Building and Industrial Automation gateway for integrators to easily interface devices to networks in commercial buildings and industrial plants. System integrators world-wide have benefited from the value of the powerful line of interoperability gateways offered by FieldServer. Now, QuickServer adds to that value by running the same robust FieldServer protocol conversion software on a highly cost effective platform backed by the experience, engineering expertise and proven technical support that integrators have come to expect from ProSoft Technology.

The user can preselect two Building Automation System (BAS) drivers (serial, Ethernet and/or LonWorks) to be loaded on the QuickServer at no extra charge. Additional drivers are available at extra cost. Common combinations of drivers include Modbus RTU, Modbus TCP, BACnet/IP®, BACnet MS/TP, LonWorks®, JCI Metasys® N2 and SNMP. QuickServer is ready to configure for the specific application. All necessary instructions and software are included with QuickServer. If the user prefers the unit to be pre-configured prior to delivery, FieldServer offers a custom configuration service.

Features and Benefits
- Ability to interface up to 250 or 500 points of common BAS protocols depending on gateway
-Multi-configuration capability; specific configurations selectable via DIP switches or software
-DIN rail mount included with gateway
-DIP switches to select baud rate or node ID on the fly
-BACnet COV support for fast data communication while reducing the traffic over a BACnet network. BTL Marked (PS-QS-1X10-XXXX)

• Specifications
• Field Connections
• Ethernet 10/100 RJ45
• Serial RS-485 terminal (up to 115K baud)
• FTT-10 LonWorks port
• Environment
• Operating temperature: -40°F to 167°F (-40°C to 75°C)
• Relative humidity: 5% to 90% RH, with no condensation
• Power Requirements
• 9 to 30 Vdc or Vac or 5 Vdc
• Current draw 279mA @ 12Vdc Other
• Configuration/Diagnostic utilities
• Capacity: 250 or 500 Points
• Table, Wall or DIN rail mount
• Physical Dimensions (WxDxH)
• 4.5 x 3.2 x 1.6 in. (11.5 x 8.3 x 4.1 cm)
• 0.4 lbs (0.2 Kg)
• Approvals
• TUV approved to UL 916 standard
• CE Mark
• BTL Mark (PS-QS-1010)
• RoHS Compliant
• FCC Part 15 Compliant
