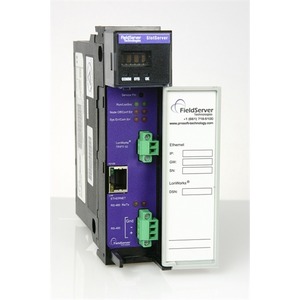

PS56-BAS-xxx ProSoft Technology BACnet Communication Modules

The SlotServer ControlLogix BACnet Communication Interfaces allow an Allen Bradley ControlLogix platform to pass up to 1500 points of data between a ControlLogix PAC and BACnet devices and networks. The BACnet SlotServer can be configured as a BACnet slave or Master enabling exchange of information between BACnet Master devices such as Trane BCU, Alerton Controllers, etc) or BACnet slave devices such as VSD, lighting controls, AC controls, etc.

Physically configured to plug into a standard ControlLogix rack, the SlotServer Module is configured for the 1756 platform using standard RSLogix message block reads to allow for efficient transfer of large blocks of data. Specific configuration data is contained in the Configuration CSV file downloaded to the module.

Features and Benefits
-FieldServer Technologies has been a leader in BACnet Gateways for many years, successfully used by all major building automation system manufacturers and integrators. BACnet is available in RS-232 (BACnet PTP – requires an RS-232/RS-485 converter), RS-485 (BACnet MS/TP) or Ethernet (BACnet Ethernet or BACnet IP). The SlotServer can accept any of these types.
-SlotServers are also available for other building automation control protocols and most common fire alarm control panel protocols. For information about the specific protocol, please refer to the datasheet for that specific protocol.
-Contact ProSoft Technology to learn more about the SlotServer and the specific protocols available to meet your specific needs.

• Specifications
• Slot width - Single
• BackPlane Current Load - 600 mA @ 5V
• Operating Temperature - 0o to 60 o C (32 o to 140o F)
• Storage Temperature :: -40o to 85o C (-40o to 185o F)
• LED Indicators - Module Status, Backplane Transfer Status, Communications status, Configuration Error, System Error, Serial Activity, Ethernet Activity, 10/100BaseT indicator
• Connections- TP/FT-10 (LonWorks), RS-485 (2-wire) , Ethernet (10/100BaseT)
• Dimensions - Length: 5.11” (130 mm), Depth: 2.27” (57,7 mm), Height: 3.70” (94,0 mm)
• Service Pin - For LonWorks commissioning
• Mounting - Local or remote rack
• Configuration - Configuration data is contained in the configuration CSV file downloaded to the module. Sample configuration file is included. Configuration file development service available from FieldServer Technologies or approved system integrators
• Humidity - Up to 95% RH, with no condensation
