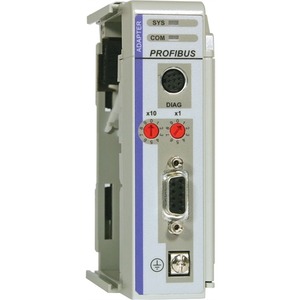

PS69-DPS ProSoft Technology PROFIBUS DPV1 Slave Module

PS69-DPS module expands the functionality of Rockwell Automation’s CompactLogix™ to include PROFIBUS DP V0/V1. The PS69-DPS is a more cost-effective option offering more features than the MVI69-PDPS, and supports both I/O control and messaging. Explicit ladder logic CIP message blocks provide slave status diagnostic data and acyclic messaging.

The PS69-DPS interface appears to the CompactLogix controller as a standard I/O module allowing it to be configured via RSLogix™ 5000, or configuration can be transferred from the Master to the PS69-DPS. For third party configuration a GSD file is supplied. The slave interface provides a diagnostic interface and has rotary switches for setting of the bus address. Complete program examples for simple and quick start-up are available.

Features and Benefits
PROFIBUS Certified - Recognized quality certification mark
DPV1 supported - Provides for acyclic messaging, extended diagnostics and extended data support
Ladder logic module configuration - Better Rockwell Automation® integration using ladder logic software

• Description
• PROFIBUS DP Specifications
• Processor - EC1-160P with integrated ASPC2
• PROFIBUS Interface - RS-485, max. 12 Mbps, potential free, according EN 50170
• Diagnostic Interface - RS-232, PS/2 Mini-DIN female connector, 9600 Baud, non isolated
• Power Supply - 260 mA at +5 V ±5 %
• Power Supply Distance Rating - 6(no more than 6 modules away from the 1769 power supply)
• Dimensions - Standard 1769 Single-slot module
• Burst - EN 61000-4-4, 2 kV, 5 kHz
• Surge - EN 61000-4-5, 2 kV common mode, 1 kV differential mode
• ESD - EN 61000-4-2, 4 kV contact, 8 kV air, 4 kV indirect
• Radiated/ Conducted Immunity - EN 61000-4-3, 10 V/m, 30 to 1000 MHz, 80% AM, 1 kHz sinewave, EN 61000-4-6, 10 V, 0.15 to 30 MHz
• Radiated/ Conducted Emission - EN 55011 Class A
• Vibration/Shock - IEC 600068-2-6, 10 to 150 Hz,± 0.75 mm, ± 1 g, 1 Octave/min, IEC 600068-2-27, 15 g, 11 ms
• Operating Temp. - 32° F to 140° F (0° C to 60° C)
• Relative Humidity - 5% to 95% (without condensation)
• Agency Certification - C-UL certified, UL 508 listed, CE
• PROFIBUS conformance - PNO certified
