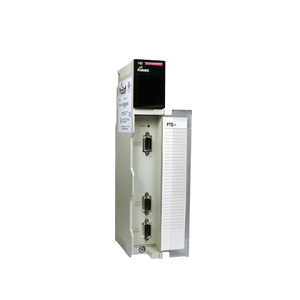

PTQ-104S ProSoft Technology IEC 60870-5-104 Server Model Quantum

The IEC 60870-5-104 Server Communication Module allows compatible processors to interface easily with IEC 60870-5-104 protocol-compatible hosts. Developed under license from Schneider Electric, the module incorporates proprietary backplane technology that enables powerful data access to the Quantum processor.

Features and Benefits
-The PTQ-104S Hot-Standby allows the module to be controlled by a secondary Quantum processor in the event of a main processor failure. The Personality Module incorporates a non-volatile Compact Flash memory for storing the module's setup and networking configuration data (or personality). It allows restoration of a module by simply exchanging the Personality Module with no need to use a PC or re-configure. The module also supports unsolicited messages, either cyclic or spontaneous optimizing the communication for efficient bandwidth usage on WAN networks and event time-stamping for more accurate information for sequence of events reporting.

• Specifications
• Backplane Current Load - 5 VDC ± 5%, 1100 mA, maximum
• Operating Temperature - 32° F to 140° F (0° C to 60° C)
• Storage Temperature :: -40° F to 185° F (-40° C to 85° C)
• Relative Humidity - 5% to 95% (without condensation)
• Vibration - Sine vibration 4 to 100 Hz in each of the 3 orthogonal axes
• Shock - 30 g, 11 ms in each of the 3 orthogonal axes
• LED Indicators - Module Status, Backplan, Transfer Status, Serial Port Activity, Serial Port Error Status
• Configuration Serial Port (PRT1) - DB-9M PC Compatible, RS-232 only, No hardware handshaking
• Application Serial Ports - DB-9M PC Compatible, RS-232/422/485 jumper selectable, RS-422/485 screw termination included, RS-232 handshaking configurable, 500 V Optical isolation from backplane
