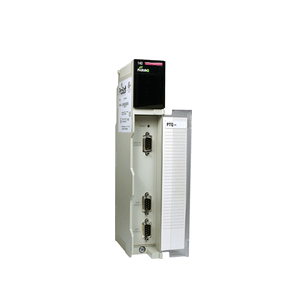

PTQ-MCM ProSoft Technology Modbus RTU/ASCII Master/Slave Module

The PTQ Modbus Master/Slave Communication Module allows Schneider Electric Quantum processors to interface easily with other Modbus protocol-compatible devices.The PTQ Modbus module provides an easy way for users of the Schneider Electric Quantum processor to add two Modbus serial ports to the control platform.

Features and Benefits
-Compatible with all common Quantum programming packages, including Concept (version 2.6 or later), and others
-Emulates Modbus Master or slave devices on each individually-configurable application port
-Supports Modbus RTU and Modbus ASCII protocol versions
-Auto-Configuration feature detects the IPC I/O rack, whether it is Analog or Digital, and the module size reducing the risk of configuration errors
-Floating-point data movement supported, including support for Enron, Daniel, and other implementations
-Suitable for SCADA and field device interface applications

• Specifications
• Backplane Current Load - 5 VDC ± 5%, 1100 mA, maximum
• Operating Temperature - 32° F to 140° F (0° C to 60° C)
• Storage Temperature :: -40° F to 185° F (-40° C to 85° C)
• Relative Humidity - 5% to 95% (without condensation)
• Vibration - Sine vibration 4 to 100 Hz in each of the 3 orthogonal axes
• Shock - 30 g, 11 ms in each of the 3 orthogonal axes
• LED Indicators - Module Status, Backplan, Transfer Status, Serial Port Activity, Serial Port Error Status
• Configuration Serial Port (PRT1) - DB-9M PC Compatible, RS-232 only, No hardware handshaking
• Application Serial Ports - DB-9M PC Compatible, RS-232/422/485 jumper selectable, RS-422/485 screw termination included, RS-232 handshaking configurable, 500 V Optical isolation from backplane
