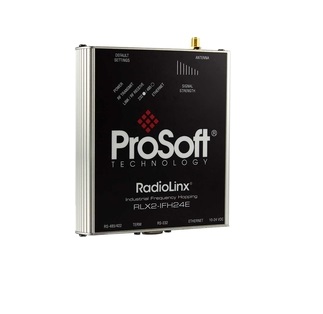

RLX2-IFH24E ProSoft Technology Industrial Frequency 2.4 GHz Ethernet

The RLX2-IFH24E is user configurable as a master, repeater and remote radio. It provides virtual peer-to-peer packet switching and network optimization using advanced Smart Switch technology. Combined with an industry leading high-speed transmitter, the RLX2-IFH24E is ideal for applications requiring fast and reliable communications at long distances.

The RLX2-IFH24E is quickly configured using the included, graphical ControlScape software. An OPC server software is also included and allows users to monitor radio network health with any OPC client based HMI software.

Features and Benefits
-1.1 Mbps RF data rate at up to 30+ miles with line-of-sight (LOS)
-Smart Switch technology provides true peer-to-peer connectivity and optimizes performance
-Serial device support via serial-to-serial tunneling or serial TCP/UDP encapsulation
-Longer wavelength of unlicensed 900 MHz for superior wireless signal propagation
-Up to one watt transmit power for long distance
-Metal enclosure, industrial operating temperatures, vibration and shock resistant
-Certification for use in hazardous locations
-Proprietary frequency hopping algorithms (not detectable by Wi-Fi scanners)
- 128 bit AES Encryption

• Specifications
• Frequency - 2.400 GHz to 2.4835 GHz
• Protocols - All standard IEEE 802.3 protocols
• Security - 128 bit AES encryption
• Network Topology - Point-to-point, point-to
• multipoint, store and forward repeater. Smart Switch packet switching for virtual peer-to-peer communications.
• Error Detection - 32 bit CRC, ARQ (Automatic Resend Query)
• Radio Type - Frequency Hopping Spread Spectrum
• Transmit Power (Programmable) - 100 mW to 1W (Programmable) 20 dBm to 30dBm (Programmable)
• Channel data rates (Programmable) - 1.1 Mbps or 345 kbps (Programmable)
• Receiver Sensitivity (Typical) - 1.1 Mbps: -97 dBm @ 10-6 BER, 345 kbps: -104 dBm @ 10-6 BER
• Outdoor Range - 15+ miles pt-pt with high gain directional antennas and RF line-of-sight (Americas version)
